Deck blocks 00818

00818

Deck blocks

MAST BLOCKS

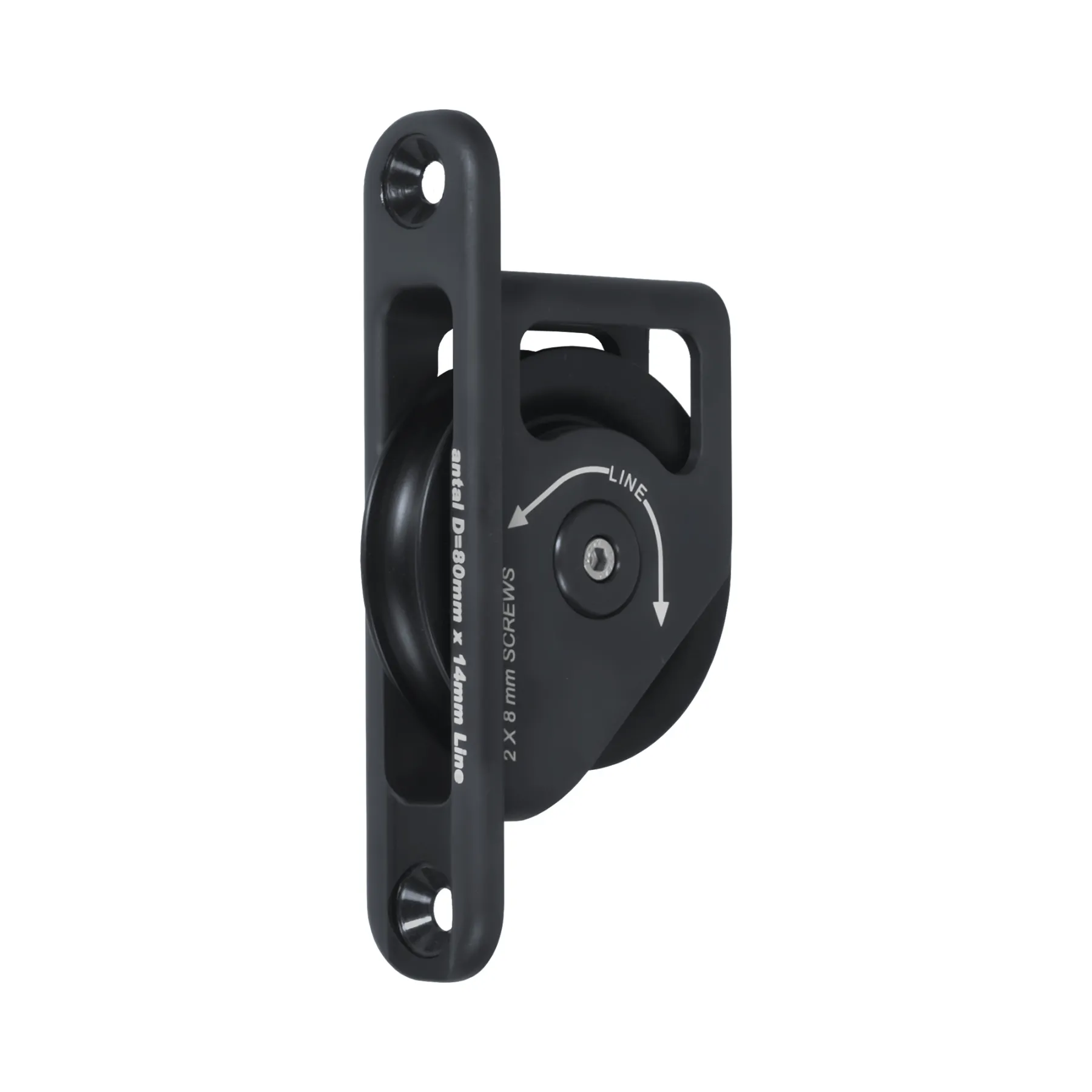

Mast block, sheave Ø80, SWL 2200 kg

Request information Print product details

Technical characteristics

Length (L)

162 mm

Width (W)

34,5 mm

Height (H)

62,5 mm

Ø sheave (D)

80 mm

Side bearing

Delrin balls

Weight

0,24 kg

Ø max line

14 mm

103 mm

27 mm

SWL on the sheave

2200 kg

Material

Aluminum

Sheave material

Resin

Fixing screws

2 x Ø8 mm

Download

Product details Exploded view 2D drawing (.dwg) 3D drawing (.stp)

Related products

00418

DECK BLOCKS MAST BLOCKS

Sheave Ø40

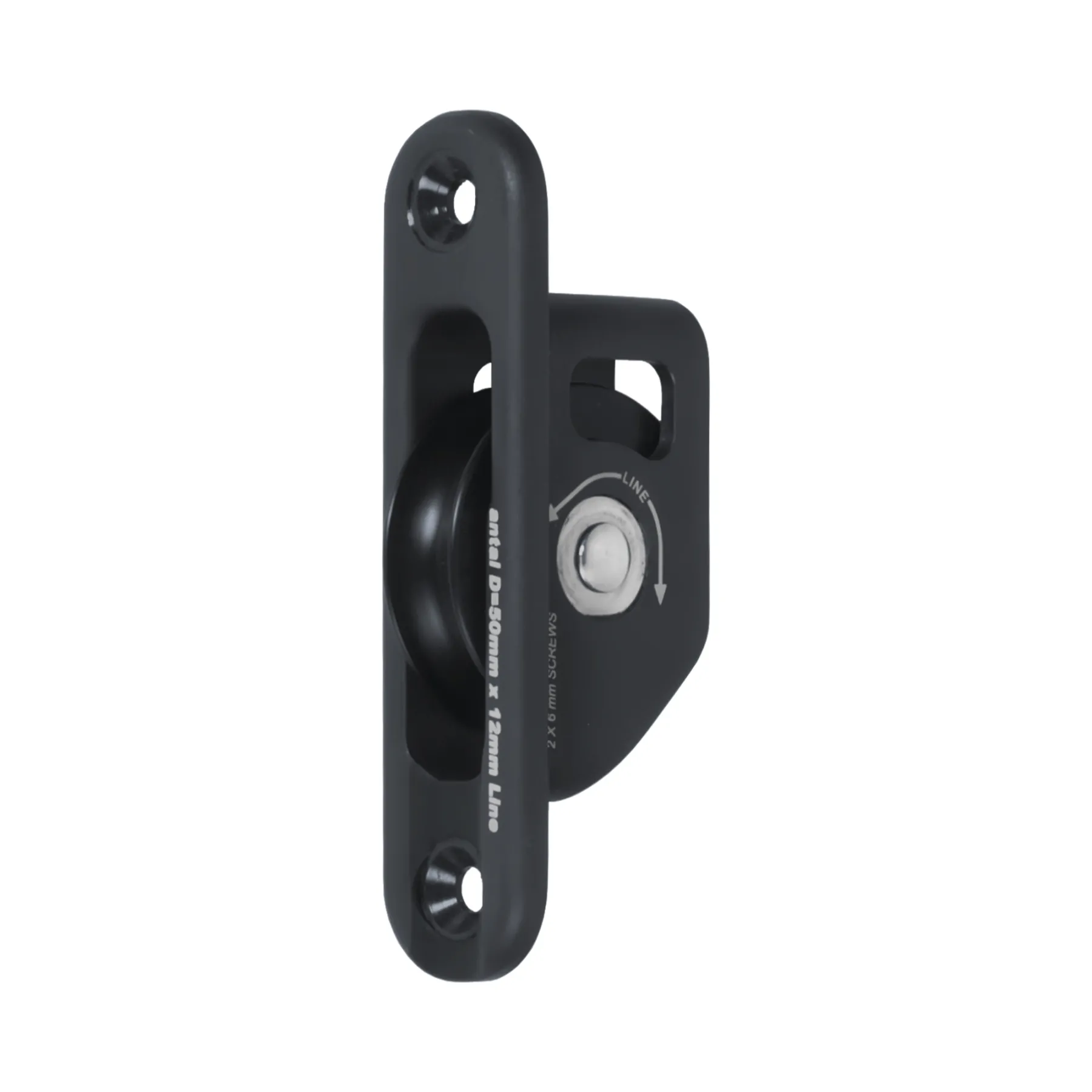

00518

DECK BLOCKS MAST BLOCKS

Sheave Ø50

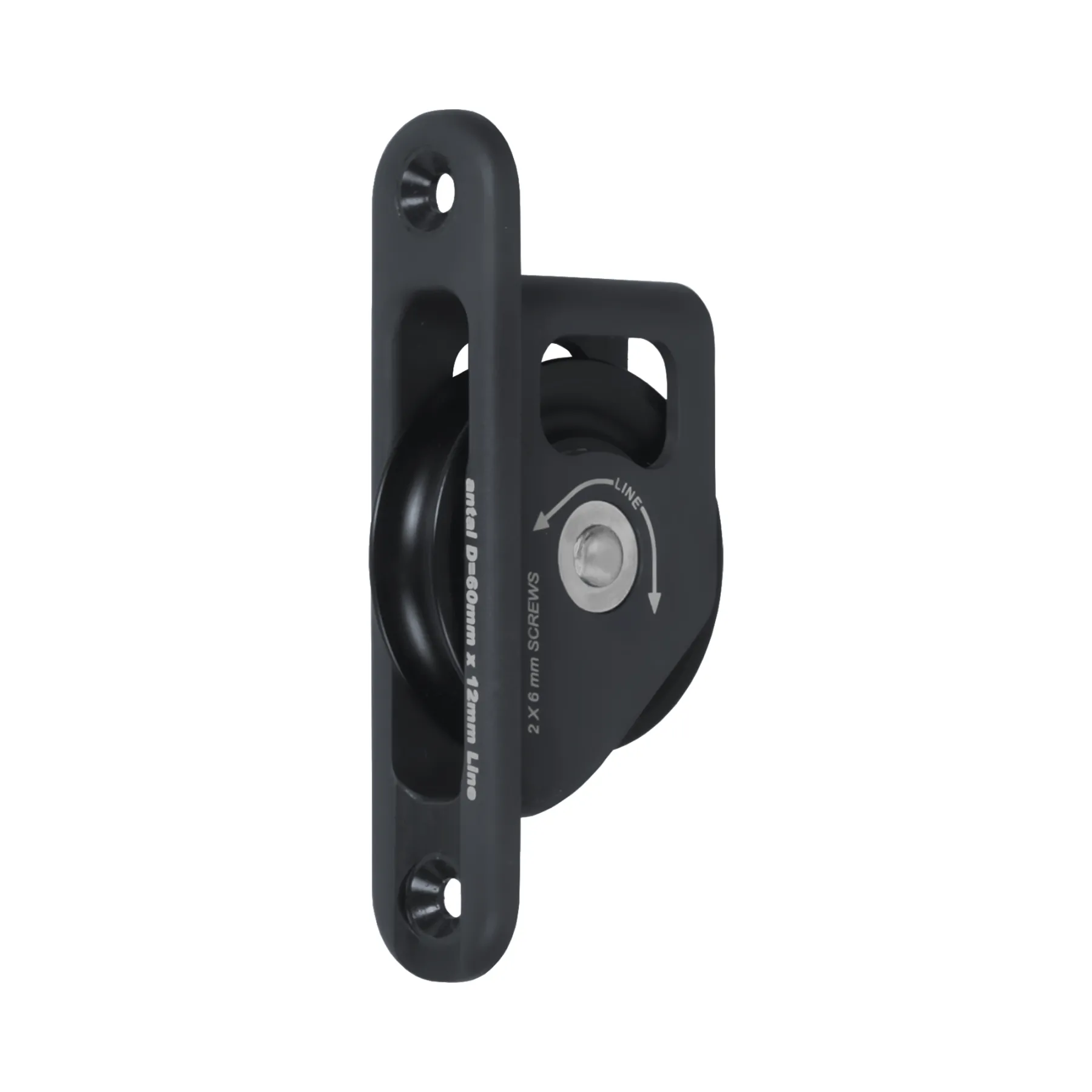

00618

DECK BLOCKS MAST BLOCKS

Sheave Ø60

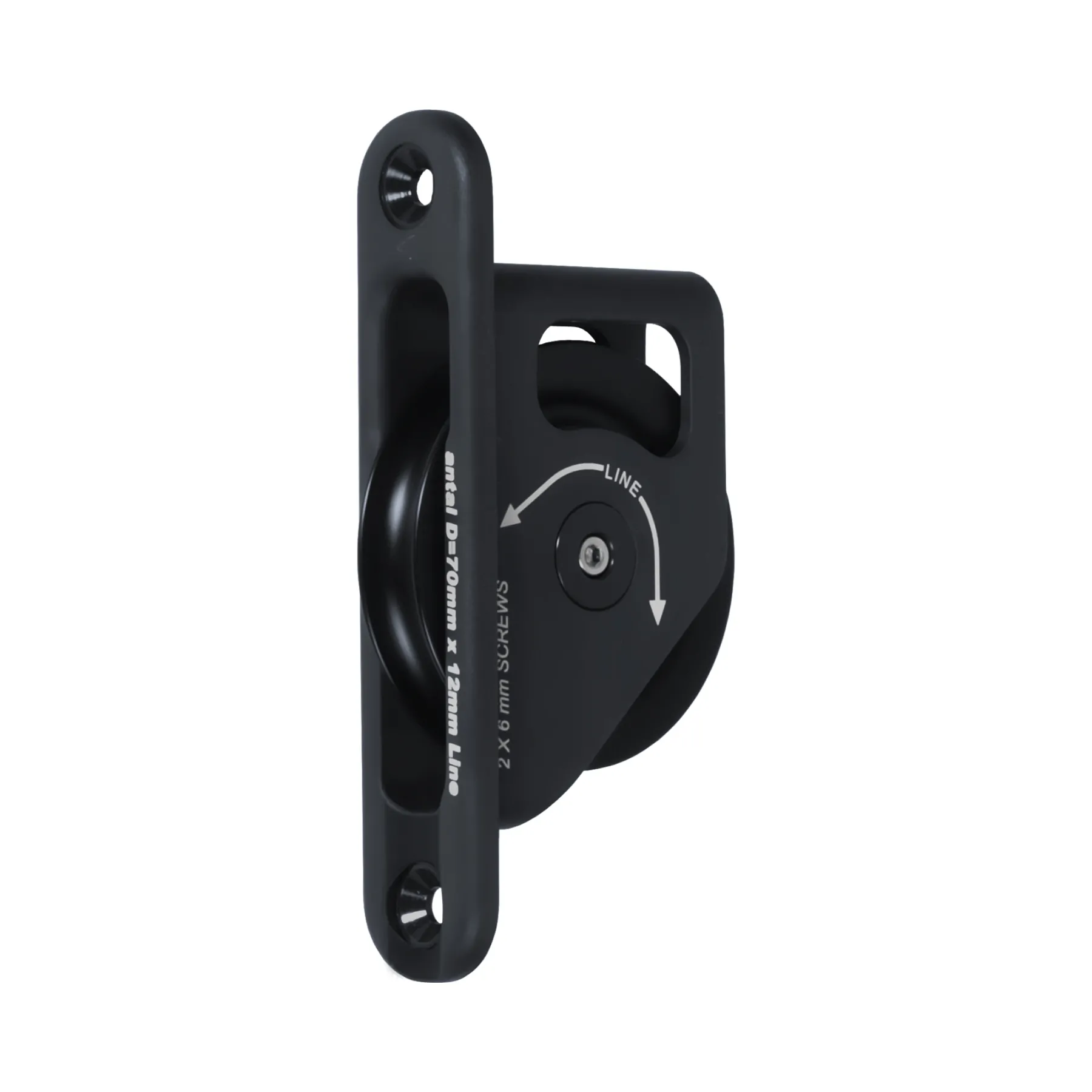

00718

DECK BLOCKS MAST BLOCKS

Sheave Ø70

00718Z

DECK BLOCKS MAST BLOCKS

Sheave Ø70

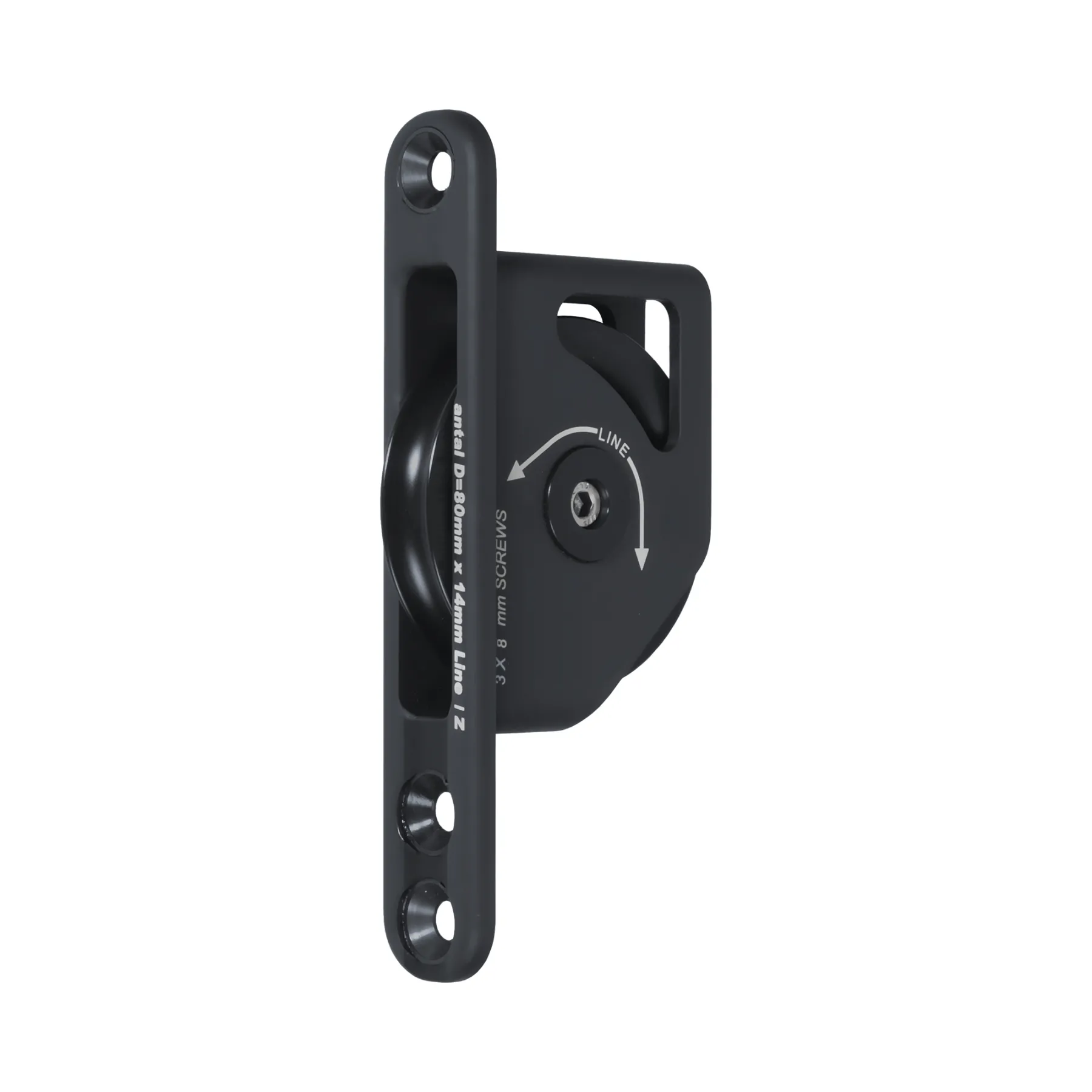

00818Z

DECK BLOCKS MAST BLOCKS

Sheave Ø80

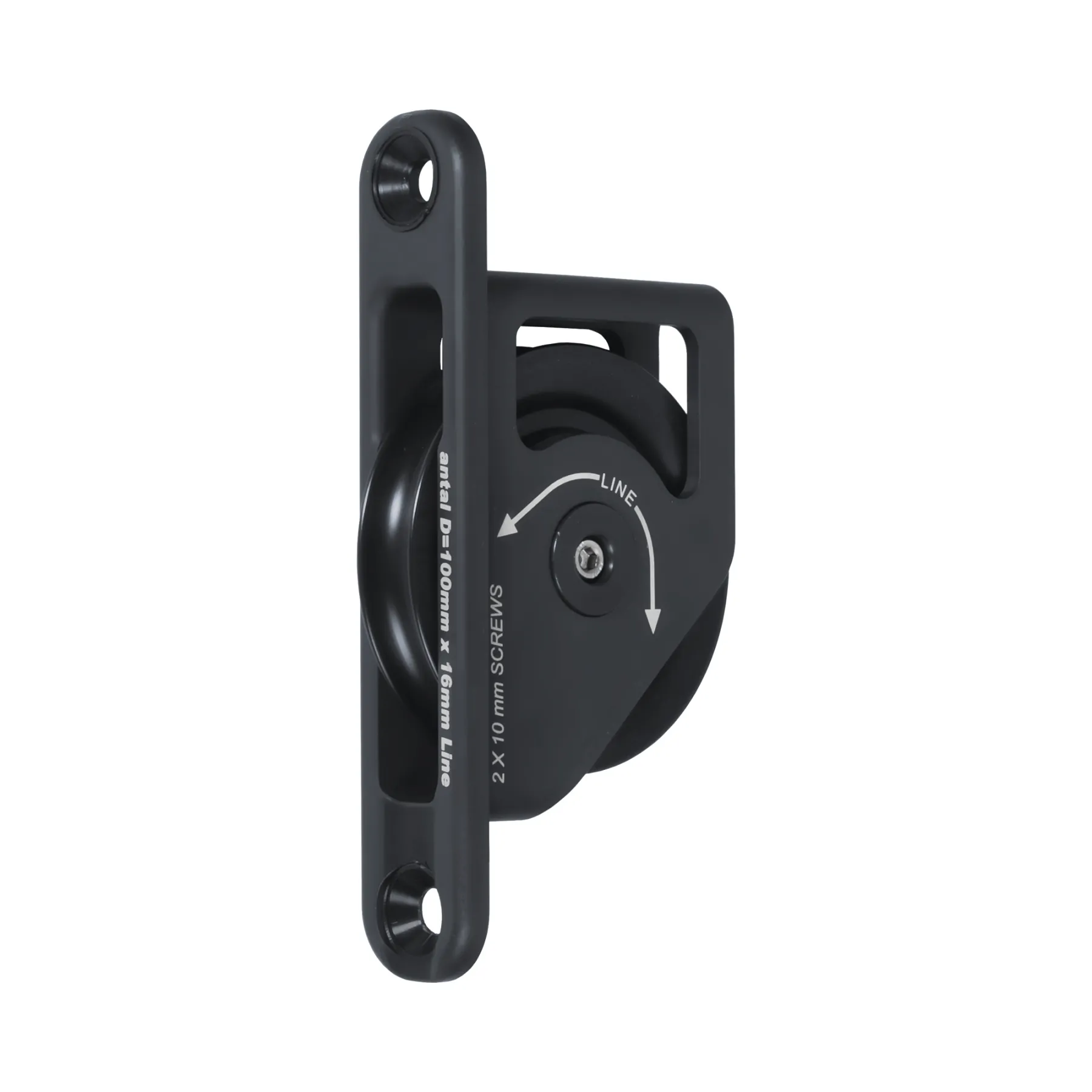

01018

DECK BLOCKS MAST BLOCKS

Sheave Ø100

01018Z

DECK BLOCKS MAST BLOCKS

Sheave Ø100

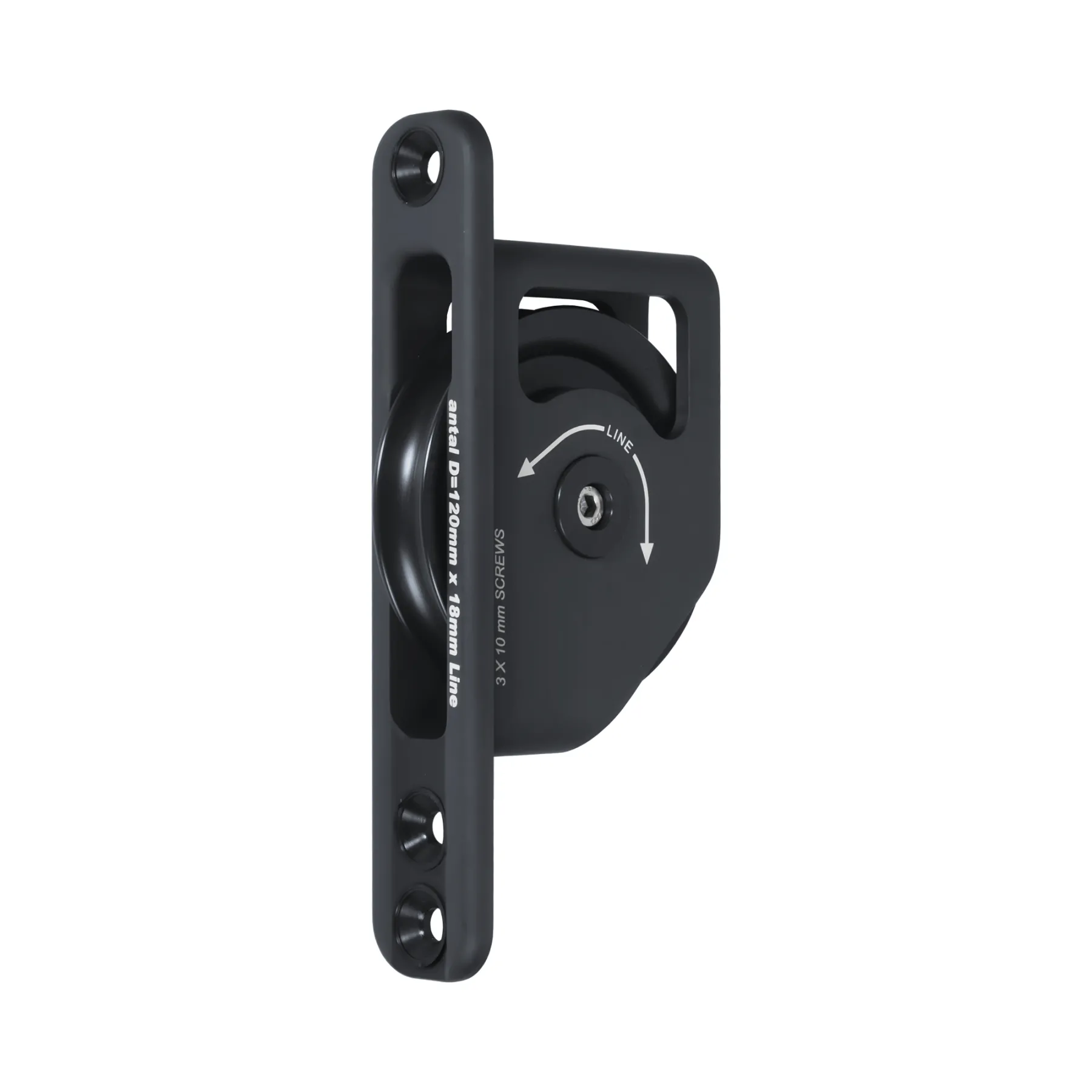

01218

DECK BLOCKS MAST BLOCKS

Sheave Ø120

01218Z

DECK BLOCKS MAST BLOCKS

Sheave Ø120

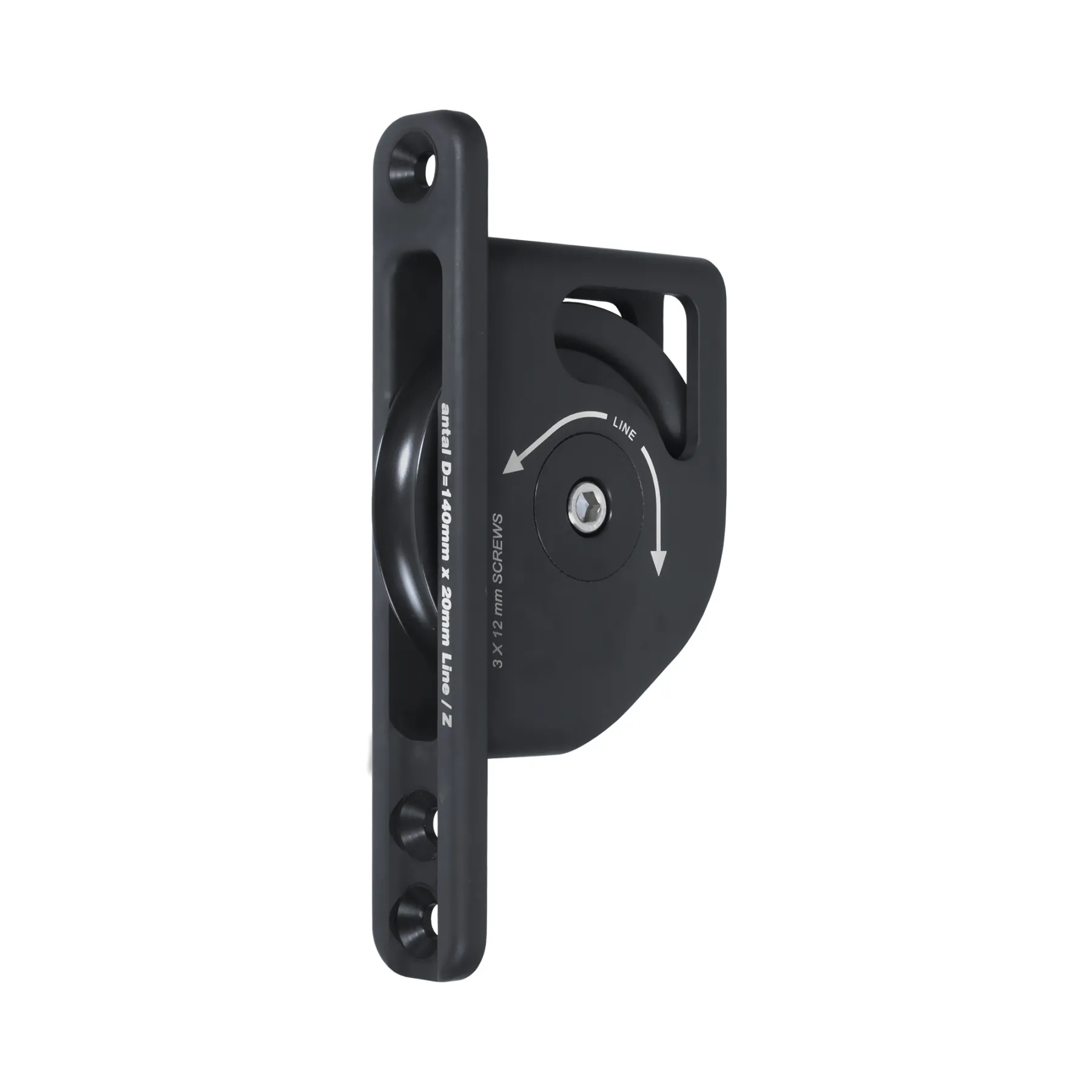

01418Z

DECK BLOCKS MAST BLOCKS

Sheave Ø140

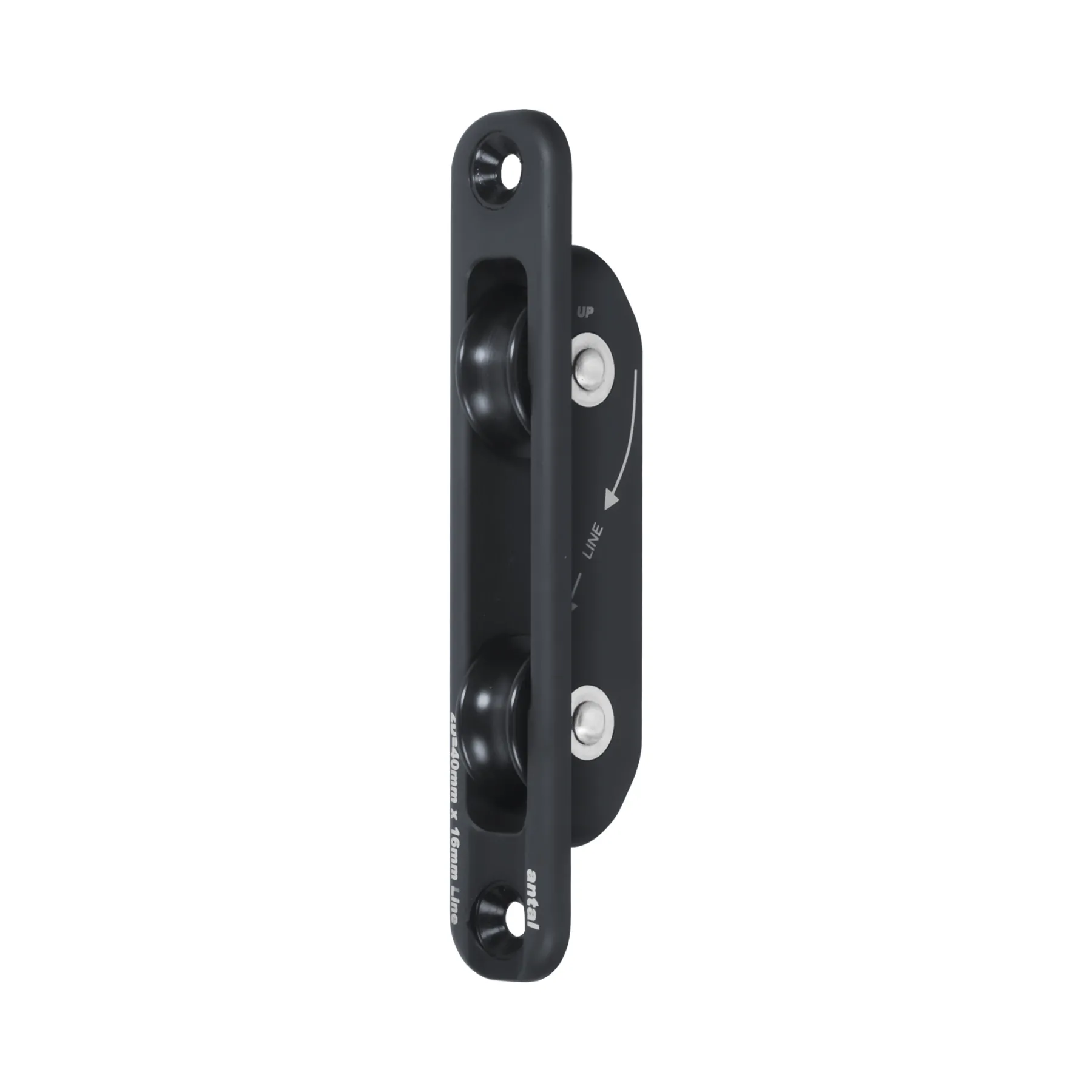

00318D

DECK BLOCKS MAST BLOCKS

Sheave Ø34

00418D

DECK BLOCKS MAST BLOCKS

Sheave Ø40

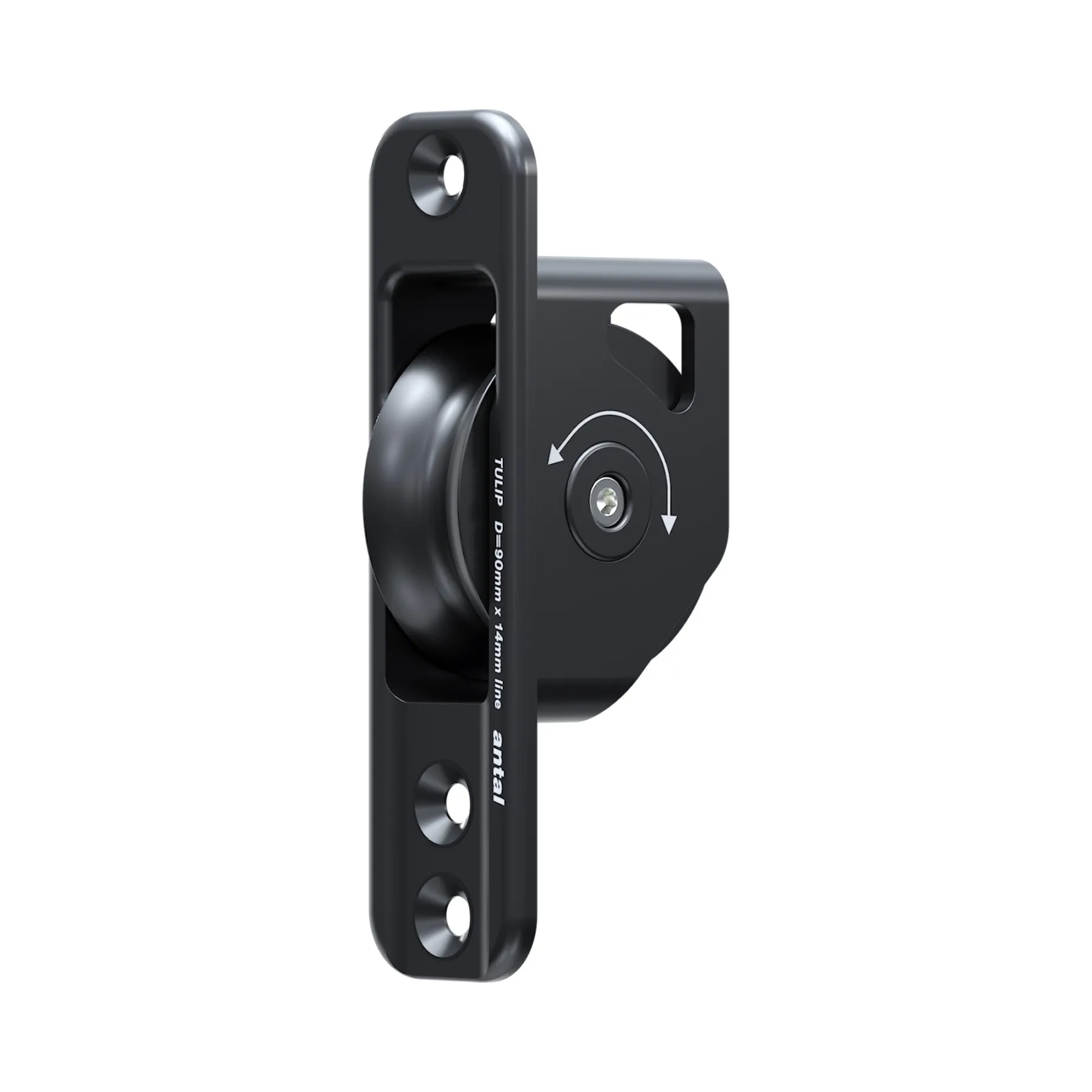

00918T
