Cars 614.223

614.223

Cars

MAINSAIL SYSTEMS

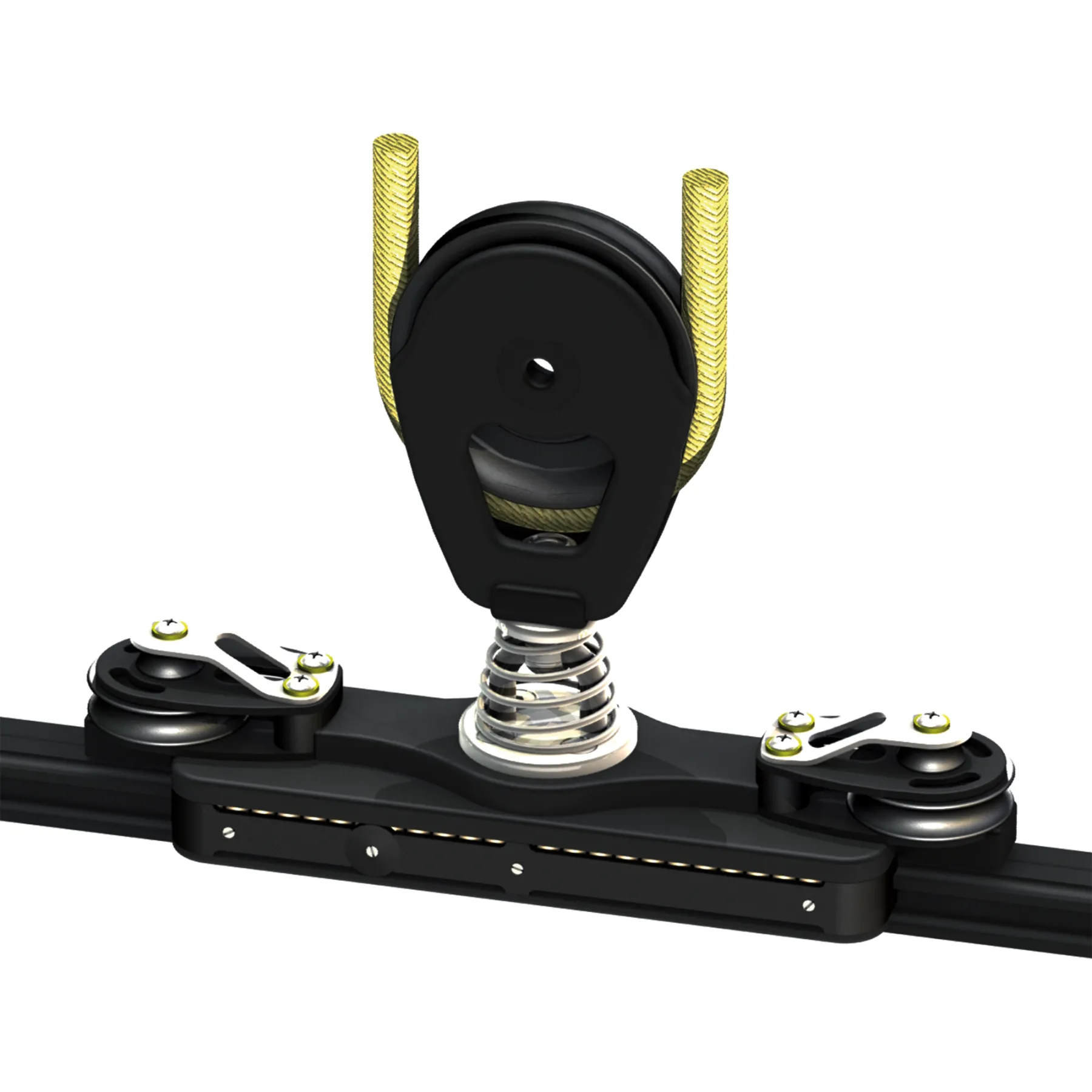

Car with 1 sheave + becket. Ball bearing car in hard black anodized aluminum with four ball circuits: 2 Torlon ball circuits (lower) and 2 Delrin ball circuits (upper). The car will remain on the track even after ball bearing failure (overload). Side windows for easy maintenance and ball bearing cleaning and/or replacement. The car, the track and all components are extruded in high strength alloy and hard black anodized (steel parts: AISI 316). The sheet block is not included.

Request information Print product details

Technical characteristics

Length (L)

330 mm

Width (W)

107 mm

Track dimensions

47 x 31 mm

SWL

5800 kg

Becket

Yes

Ø control pulley

75 mm

Ø suggested block

140 mm

No. balls

124 x Torlon + 124 x Delrin

433 mm
