Cars 626.492

626.492

Cars

GENOA SYSTEMS

Hard black anodized aluminum slider with low friction Nylon sliding inserts. The revolving upper structure (± 50°) is made of AISI 316 S.Steel. The resin sheave is fitted with 2 side ball bearing. AISI 316 S.Steel pin with a lock-up position. Becket for remote control line.

Request information Print product details

Technical characteristics

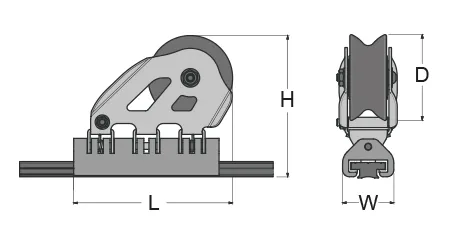

Length (L)

190 mm

Width (W)

60 mm

Track dimensions

40 x 8 mm

Ø sheave (D)

100 mm

Weight

2,12 kg

SWL

4800 kg

Becket

Yes

Stop pin

Yes

168 mm

Related products

Endfitting simple - 40x8

691.341B

CARS GENOA SYSTEMS

Simple endfitting - 40x8
